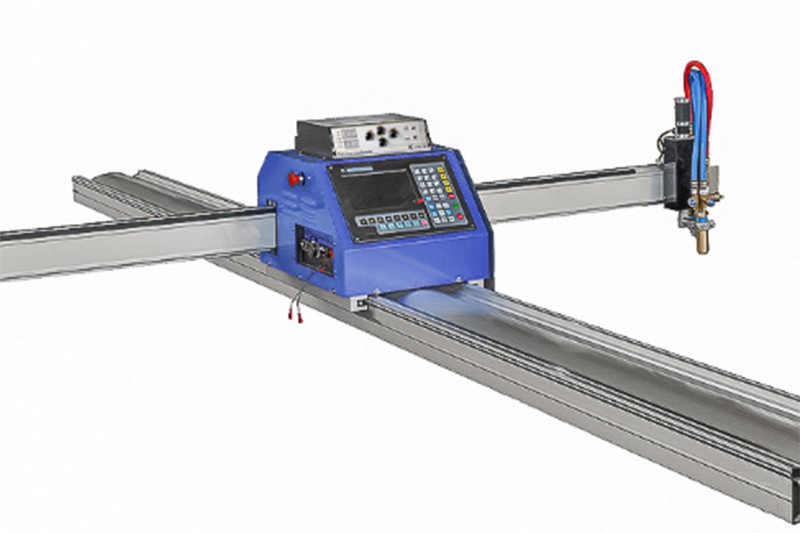

Portable CNC Plasma & Flame Cutting Machine, GC Series
Portable CNC Plasma & Flame Cutting Machine, GC Series
Effective cutting area: 1300×2500mm (51×98 inch)
Gas types for flame cutting: Oxygen + Propane or Oxygen + Acetylene
Max. flame cutting thickness: 200mm (8 inch)
Max. plasma cutting thickness: 15mm (configured with plasma power supply according to cutting thickness)
Working precision of plasma cutting: ±0.2mm/m
Voltage & frequency: e.g. 110V±10％, 60Hz, 0.21HP(160W)
Weight: 120kg
49 pre-set patterns
Request a quote
Portable CNC plasma/flame cutting machine is easy to transport due to its low weight and compact structure, suitable for applications where cutting format is not large. With its affordable price, this portable cutting machine is an optimal choice to meet small & medium-sized companies' needs for fully automatic CNC cutting operations.
This portable CNC cutting machine offers two kinds of cutting options, i.e. plasma cutting and flame cutting. It is a high-efficiency energy-saving solution for cutting carbon steel, stainless steel and non-ferrous metals of various thicknesses.
Three Options of Cutting Capabilities Can Meet Your Individual Production and Space Demands
380V±10％VAC,50/60HZ three phase 220V±10％VAC,50/60HZ single phase
Flame cutting(oxy-fuel cutting)
Torch height control
Electric flame height adjustment(±60mm)
Gas types for flame cutting
Oxygen+Propane or Oxygen+Acetylene
Cutting torch
One-piece cutting torch
Plasma cutting
Plasma cutting thickness
0-15mm Depending on plasma power
Torch height control
Arc voltage torch height control
Gas types for plasma cutting
N2,O2,compressed air
Plasma cutter
63A-160A
Cutting torch
8m plasma cutting torch
CNC control system
FL2100B
Motor
Stepper motor
Working precision
±0.2mm/m
Software
Starcam/Fastcam
Cutting mode changeover
Simple changeover between plasma and oxy-fuel cutting.Plasma cutting can be performed by adding plasma power supply,arc voltage torch height control and plasma cutting torch.
Plasma cutting comes with plasma cutting torch to cut metal plate up to 40mm thickness, providing a fast cutting process;
Flame cutting capable of cutting items in thicknesses ranging between 2mm and 200mm, featuring wide applications with lower cost;
