Max. plasma cutting thickness: 40mm (configured with plasma power supply according to cutting thickness)
Working precision of plasma cutting: ±0.2mm/m
Voltage & frequency: e.g. AC220V/3×380V±10% 50Hz, 4HP(3KW)
49 pre-set patterns
High stability, reasonable structure, easy operation and advanced process
High cutting precision, premium quality
Request a quote

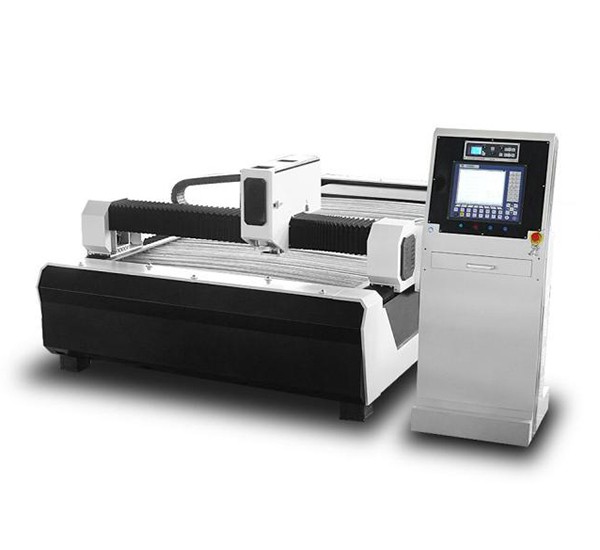

GC-T1530 CNC plasma cutting table is a high efficiency automatic sheet metal cutting machine independently developed for processing metal structural parts. It can implement straight-line cutting in both longitudinal and transverse directions, and also curved-line cutting in any direction, providing a high precision cut edge and small probability of deformation.
This CNC plasma cutting machine is mainly used for fast cutting of metal plates to produce various shapes, it features high automation, high cutting precision and good dynamic stability. CNC system and servo system are from world's well-known brands, along with rich software and high quality accessories, this CNC plasma cutting table can provide you with a premium quality metal product or part.
Cutting Mode
it comes with plasma cutting torch to cut metal plate up to 45mm thickness, providing a fast and stable cutting process with high precision cutting result
380V±10％VAC, 50/60HZ three phase 220V±10％V AC, 50/60HZ single phase
Plasma cutting thickness
0-40mm
Torch height control
Arc voltage torch height control
Gas types for plasma cutting
N2, O2, compressed air
Plasma cutter
63A-400A
Cutting torch
One set of plasma cutting torch
CNC control system
FL2300
Motor
Leadshine stepper motor/Leadshine hybrid servo motor/Panasonic servo motor
Working precision
±0.2mm/m
Guide rail size (L×W)
2000mm×4000mm
Software
Starcam, Fastcam
Materials
steel
aluminum
galvanized steel
Industries
chemical machinery
signboard
decoratives
molds of various metals
Fangling Cutting Control System The control system adopts 7 inch touch screen, with 49 pre-set patterns which can be easily selected by entering the corresponding number.
Functions
Pattern display
8-language menu
Metal plate adjustment
Automatic kerf compensation
Automatically memorize the last cutting point when power off
Cutting from current position
Offline cutting
Online upgrade
Drag Chain The drag chain is made of nylon PA66, offering good resistance to high/low temperature and UV, without damage or deformation.
Cutting Table The cutting table is composed of flat steel slats that are parallel to each other. The slat spacing can be set according to the plate material and size of part being cut. The slats are easy to adjust and install.
Software FastCAM Pro is a professional software for plasma and flame cutting machines, it can read or convert various CAD file formats such as DXF, DWG and IGES.
Rail System The cutting machine adopts high precision rack and pinion coupled with motor, the rack precision is certified in accordance with JB/T5102-1999 standard. Besides, double-axis linear guide rail is used to provide higher precision of longitudinal movement. The longitudinal guide rail is precisely ground, featuring smooth surface and high durability. The machine can run with vibration-free and high-precision motion.
Bridge Beam The machine beam comes with double-axis guide rail and dust-proof body. Due to the aluminum alloy structure of torch height control, the load on the machine beam is greatly reduced. The height adjusting shaft is made from high carbon steel rod which provides greater resistance to friction.
Anti-collision Device The anti-collision device is installed to protect the plasma cutting torch against damage.
