Gas types for flame cutting: Oxygen + Propane or Oxygen + Acetylene
Max. flame cutting thickness: 200mm (8 inch)
Max. plasma cutting thickness: 40mm (configured with plasma power supply according to cutting thickness)
Working precision of plasma cutting: ±0.2mm/m
Voltage & frequency: e.g. AC220V/3×380V±10% 50Hz, 10.06HP (7.5KW)
49 pre-set patterns
Lightweight, easy to transport and install
Request a quote

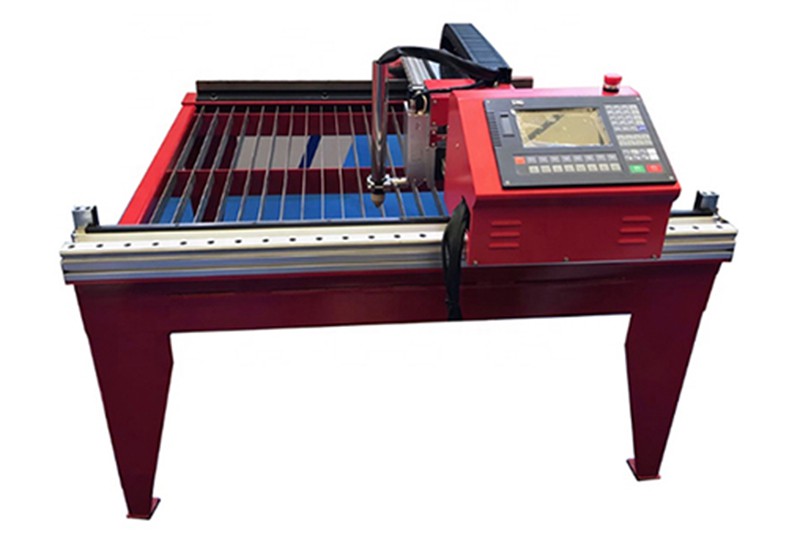

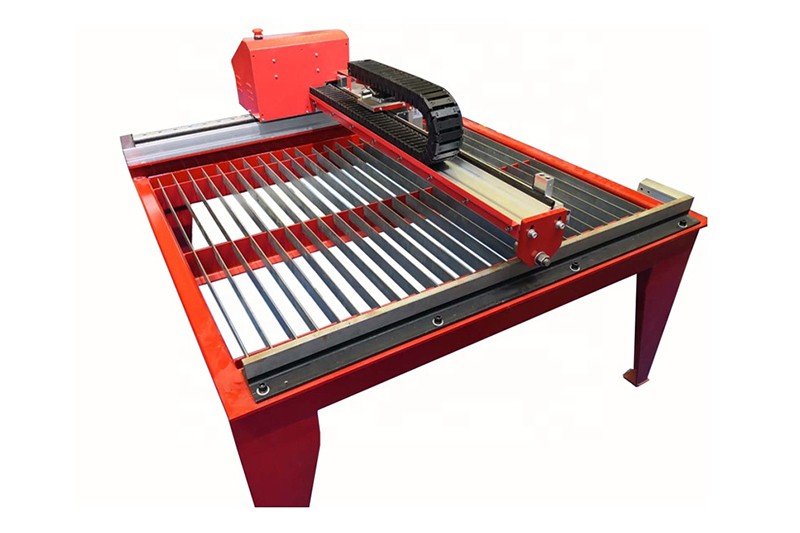

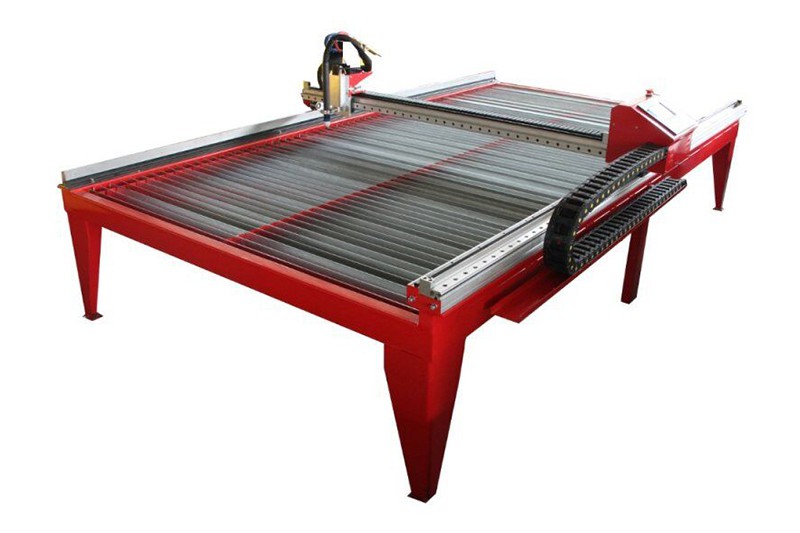

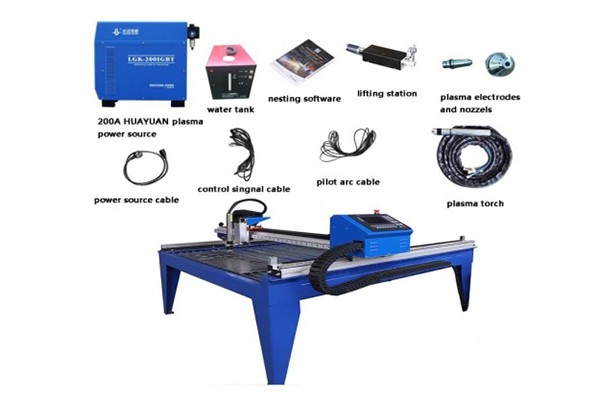

GC-D1515 CNC plasma flame cutting table is a high-speed compact CNC cutting system that particularly designed to precisely and quickly cut carbon steel plate, aluminum plate, copper plate, stainless steel plate and more metal plates. It can offer a post-processing free cut edge that requires no de-burring process. In addition, this CNC cutting table is also an ideal alternative to hole punching machine.
This CNC plasma flame cutting table is featured by high automation, reliable performance, high precision, low cost and ease of maintenance, can be applied in automatic cutting of medium and thin non-ferrous metal sheets and plates.
380V±10％VAC, 50/60HZ three phase 220V±10％V AC, 50/60HZ single phase
Plasma cutting
Plasma cutting thickness
0-40mm
Torch height control
Arc voltage torch height control
Gas types for plasma cutting
N2, O2, compressed air
Plasma cutter
63A-200A
Cutting torch
One set of plasma cutting torch
CNC control system
FL2100
Motor
Leadshine stepper motor
Working precision
±0.2mm/m
Flame cutting (oxy-fuel cutting)
Flame cutting thickness
1-100mm (Oxygen + Propane or Oxygen + Acetylene)
Torch height control
Electric flame height adjustment (±60mm)
Gas types for flame cutting
Oxygen + Propane or Oxygen + Acetylene
Guide rail size (L×W×T)
2000mm×2000mm
Software
Starcam/Fastcam
Cutting mode changeover
Simple changeover between plasma and oxy-fuel cutting. Plasma cutting can be performed by adding plasma power supply, arc voltage torch height control and plasma cutting torch.
Plasma cutting comes with plasma cutting torch to cut metal plate up to 40mm thickness, providing a fast and stable cutting process with high precision cutting result;
Flame cutting capable of cutting thick metal plates, featuring wide applications with lower cost;

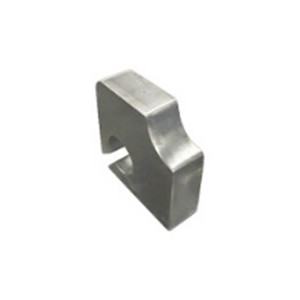

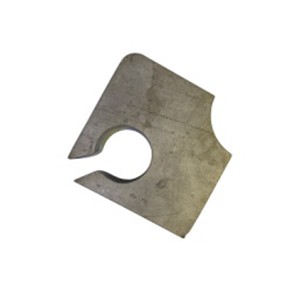

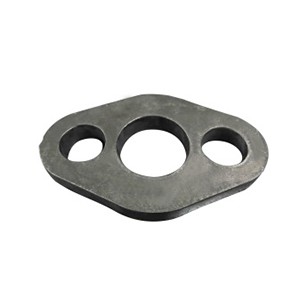

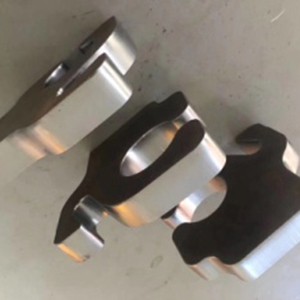

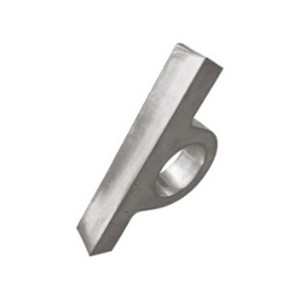

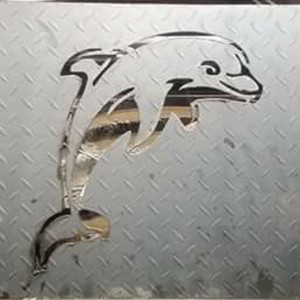

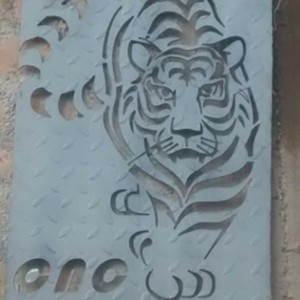

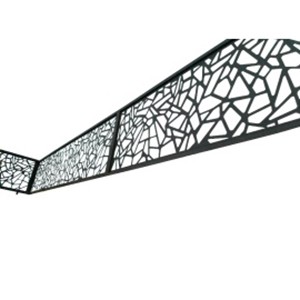

Materials
carbon steel
stainless steel
alloy steel
aluminum and other non-ferrous metals
Industries
metal ducts
advertising boxes
channel letters
electronics

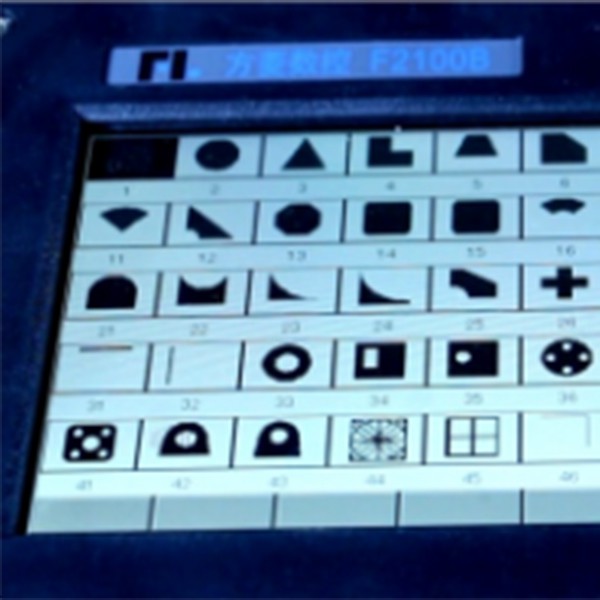

Fangling Cutting Control System The control system adopts 7 inch touch screen, with 49 pre-set patterns which can be easily selected by entering the corresponding number.
Functions
Pattern display
8-language menu
Pattern storage, 49 pre-set patterns
Metal plate adjustment
Automatic kerf compensation
Automatically memorize the last cutting point when power off
Cutting from current position
Offline cutting
Online upgrade

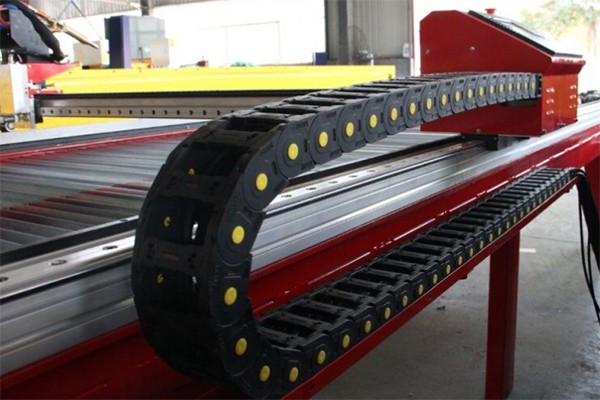

Drag Chain The drag chain is made of nylon PA66, offering good resistance to high/low temperature and UV, without damage or deformation.

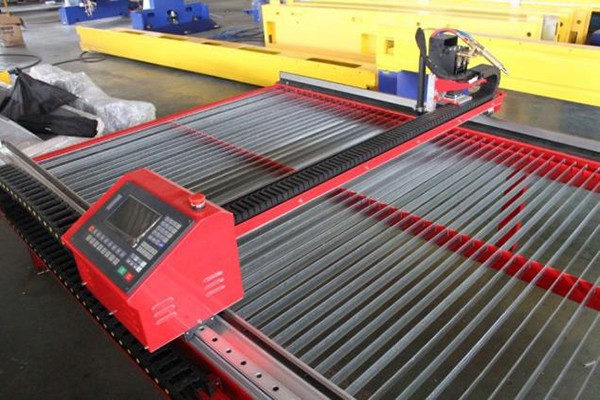

Cutting Table The cutting table is composed of flat steel slats that are parallel to each other. The slat spacing can be set according to the plate material and size of part being cut. The slats are easy to adjust and install.

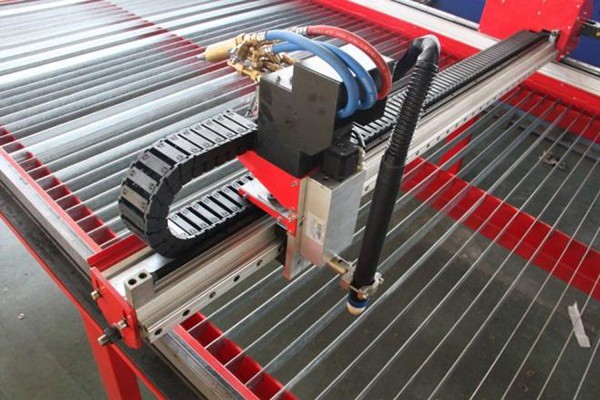

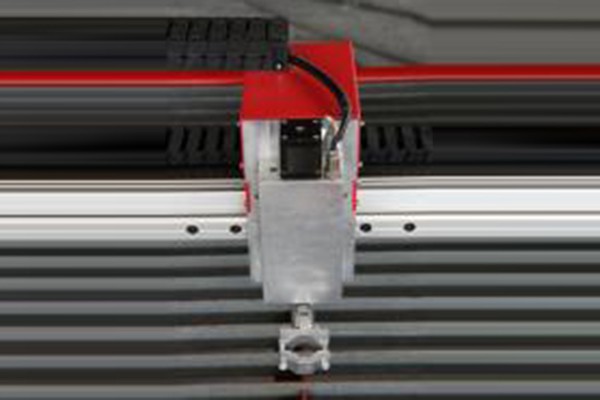

Torch Lifter It provides vertical motion for cutting torch, enjoying features of good anti-interference ability, high sensitivity, long service life, stable operation, low noise level, ease of use and simple installation.
Software FastCAM Pro is a professional software for plasma and flame cutting machines, it can read or convert various CAD file formats such as DXF, DWG and IGES.

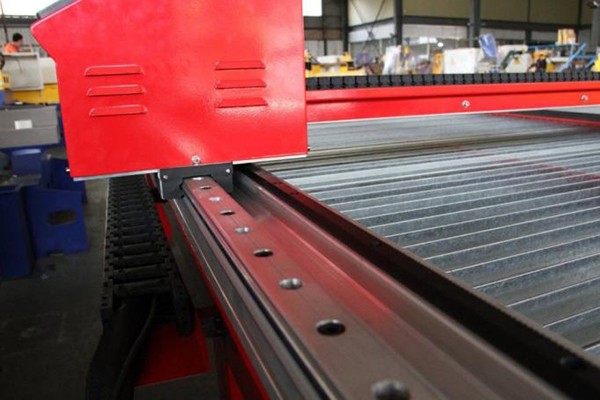

Rail System The cutting machine adopts high precision rack and pinion coupled with motor, all the racks and pinion gears are subjected to highly precise processing. Besides, double-axis linear guide rail is used to provide higher precision of longitudinal movement. The longitudinal guide rail is precisely ground, featuring smooth surface and high durability. The machine can run with vibration-free and high-precision motion.
Bridge Beam The machine beam comes with double-axis guide rail and dust-proof body. Due to the aluminum alloy structure of torch height control, the load on the machine beam is greatly reduced. The anti-collision device is installed to protect the plasma cutting torch against damage.

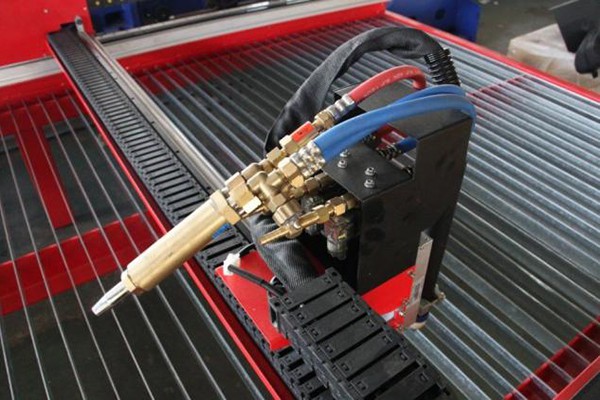

Cutting Torch The flame cutting torch is fixed on its carriage, while the plasma cutting torch is used together with plasma power supply. The cutting system allows for easy changeover between flame cutting torch and plasma cutting torch.
