Gantry CNC Cutting Machine

Are you looking for a plasma cutting machine or oxy-fuel cutting machine capable of providing fast and precise cutting performance? We are able to offer.

Our product line of CNC cutting machines can offer optimal solutions to your needs for metal fabrication. We are delighted to provide our gantry CNC cutting machines as you can see from the category table below. If you have any questions or request for quotation, please do not hesitate to contact us.
    1. Gantry CNC Plasma Flame Cutting Machine, GC-3080
    2. Gantry CNC Plasma Flame Cutting Machine, GC-3080 It adopts gantry structure with span options of 3m, 4m, 5m, 6m and 8m. Drive system uses double sides drive. Both flame cutting (oxy-fuel cutting) and plasma cutting are available to adapt to various cutting applications.
    1. Mini Gantry CNC Plasma Flame Cutting Machine, GC-3010
    2. Mini Gantry CNC Plasma Flame Cutting Machine, GC-3010 It features small footprint and gantry structure with span of 3m, 4m and more options. Both flame cutting (oxy-fuel cutting) and plasma cutting are available to adapt to various cutting applications, providing a cost-effective solution.
Features
  • Programmable to cut straight lines or curved lines of any shape;
  • Dynamic/static illustration of the process, easy and intuitive to learn;
  • Can read or convert various CAD file formats via USB port of the cutting machine to achieve various shapes cutting, it also allows direct programming and operating through the cutting machine;
  • Exceptional design of rail and moving mechanism ensures machine's high working precision of ±0.2mm/m;
  • Both flame cutting (oxy-fuel cutting) and plasma cutting are available;
  • 8-language menu, Chinese / English / Russian / Spanish / Portuguese / Dutch / French / Japanese / Korean;
  • The machine weight is only 400kg, the cutting area is 2200×8000mm, economical, transportable and easy to use;
  • High working stability, effectively avoiding high-frequency interference;
  • Cantilever and machine structure are made of aluminum alloy, providing lightweight and ease of transport;
  • With its unique and compact structure design, the cutting machine is featured by small footprint, stable running and high cutting precision;
  • Automatic ignition device and automatic torch height control;
  • The portable body design ensures the cutting machine can cut directly placed on the raw metal plate, providing great convenience;
Main Configurations

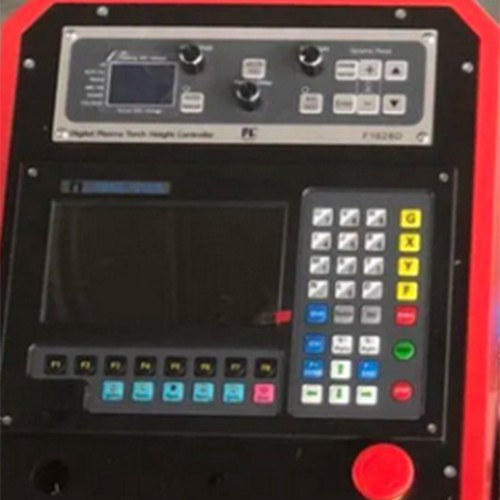

    2. Fangling Cutting Control System The control system adopts 11.4 inch touch screen, with 49 pre-set patterns which can be easily selected by entering the corresponding number.

      Functions

      • Pattern display
      • 8-language menu
      • Pattern storage, 49 pre-set patterns
      • Metal plate adjustment
      • Automatic kerf compensation
      • Automatically memorize the last cutting point when power off
      • Cutting from current position
      • Offline cutting
      • Online upgrade

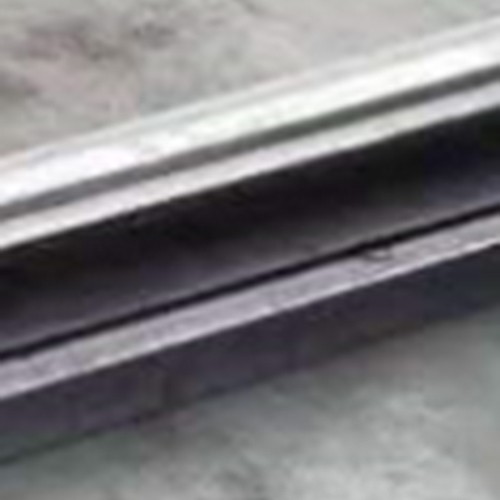

    2. High Precision Linear Guide Rail Adopting high precision linear guide rail, the guiderail in transverse motion is made of lightweight aluminum alloy which features high resistance to deformation, while the longitudinal guide rail offers high precision and stable operation.

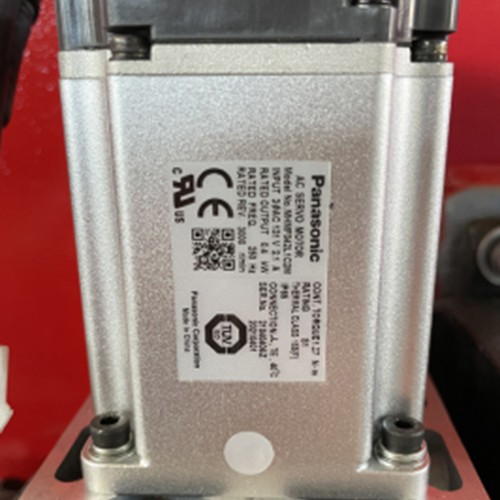

    2. Panasonic Stepper Motor, THC and DC Motor These components can work coordinately, providing better performance than that of those parts from different brands.

    2. Cutting Torch The flame cutting torch is fixed on its carriage, while the plasma cutting torch is used together with plasma power supply. These two types of cutting torch can not work simultaneously.

    2. Software StarCAM is a professional software for plasma and flame cutting machines, it can read or convert various CAD file formats such as DXF, DWG and IGES.
